Product Description:
The Flywoo GOKU F405 HD 1S 5A AIO w/TXCO ELRS is a groundbreaking flight controller designed specifically for ultra-compact 1S HD drones, combining cutting-edge performance with unmatched portability.

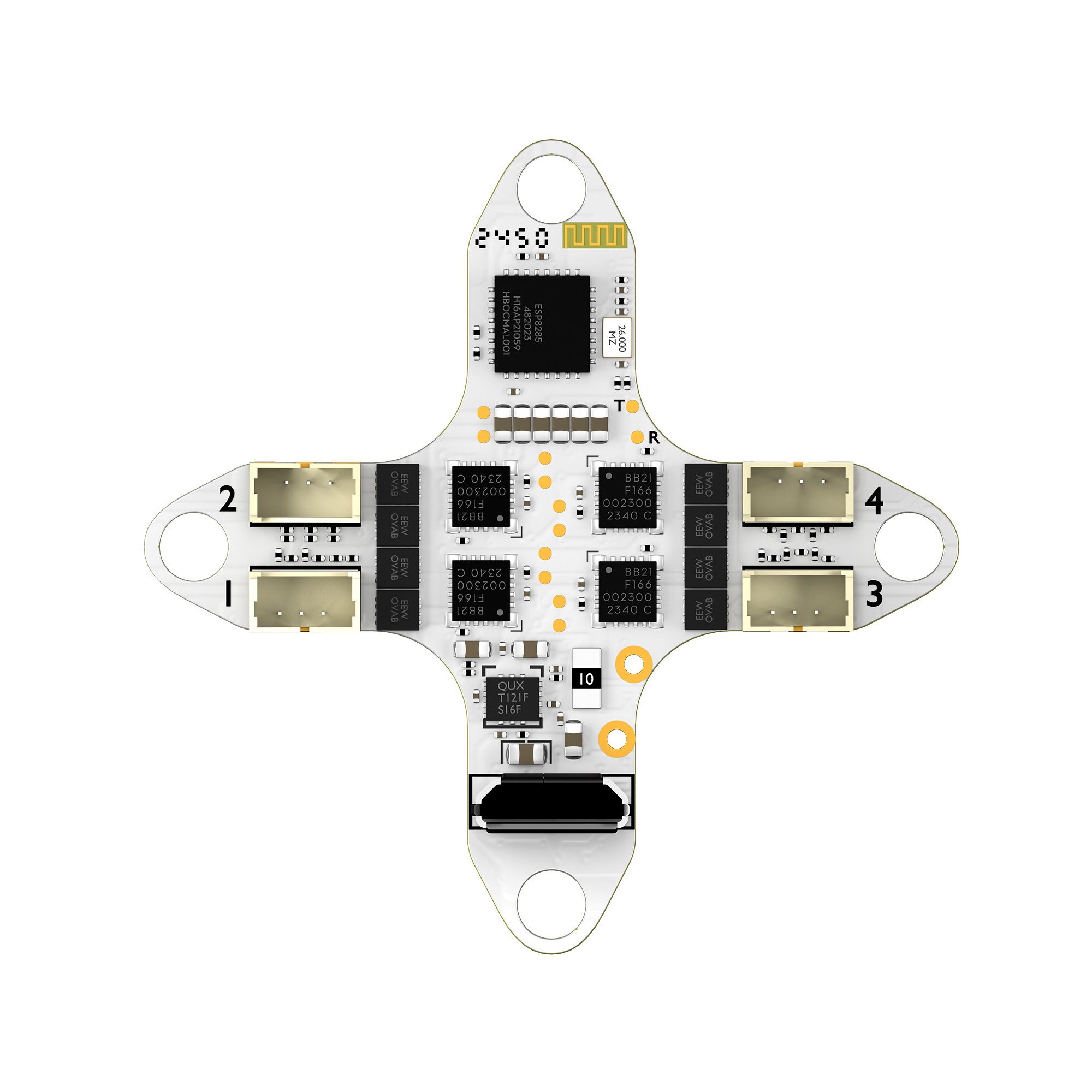

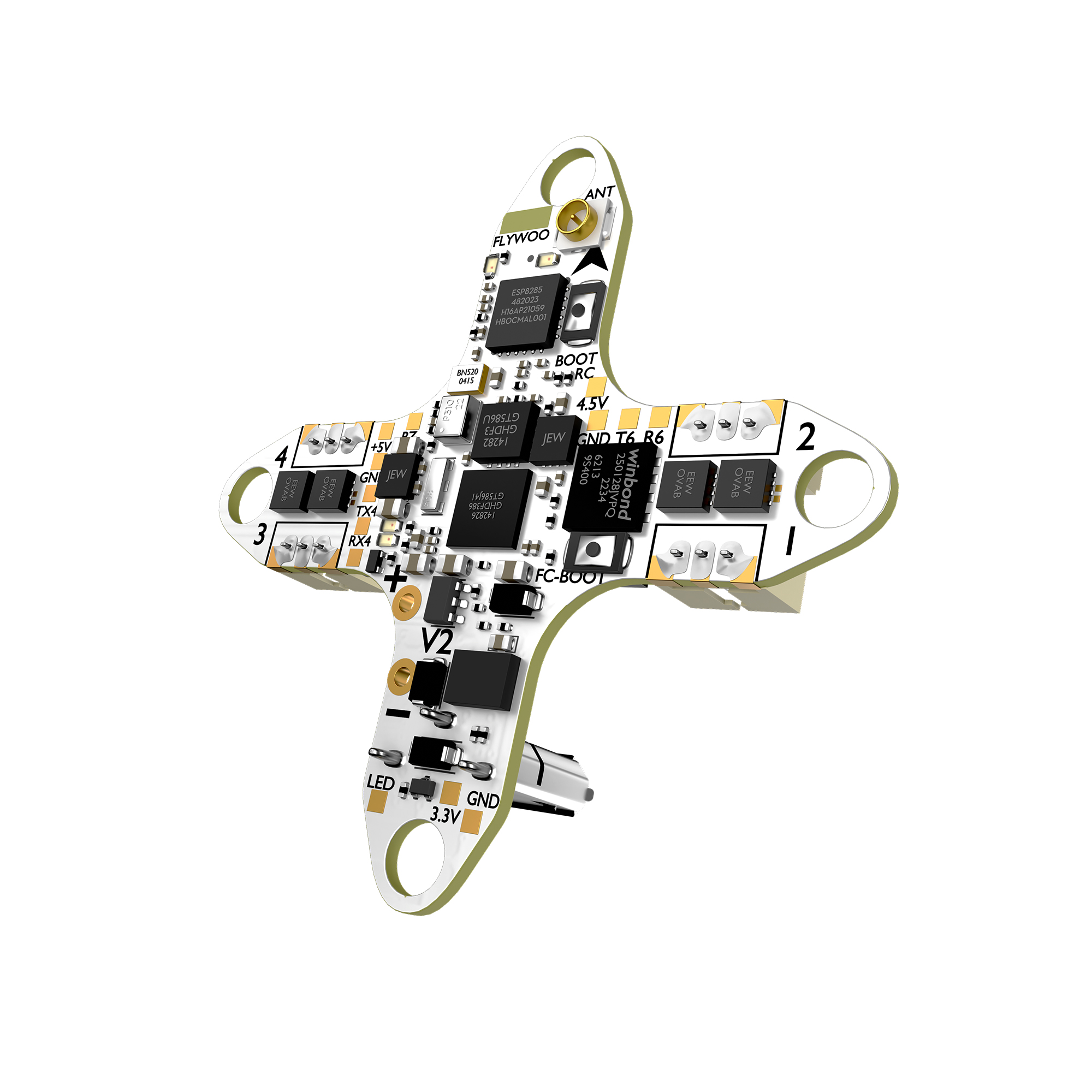

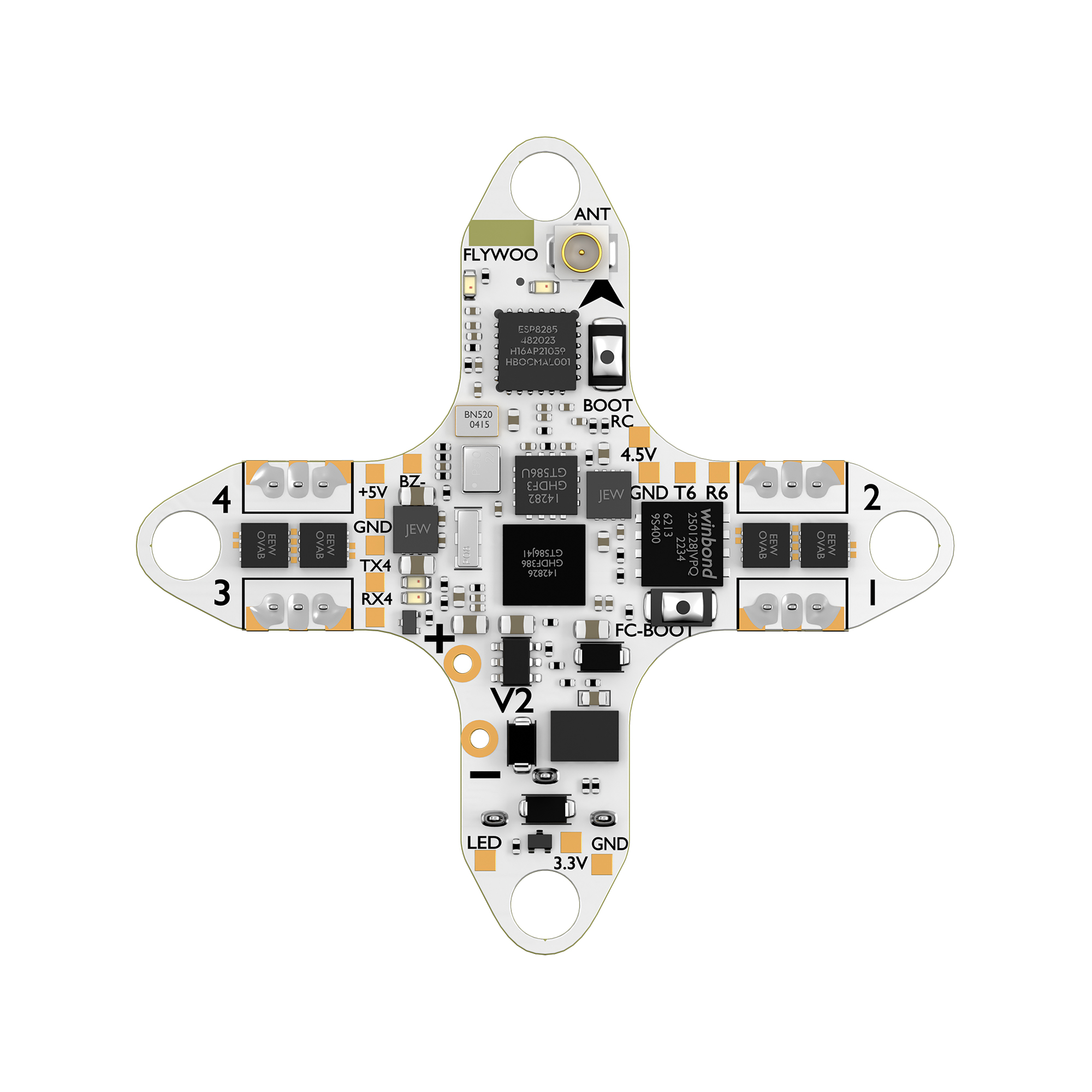

Built around the STM32F405 BGA MCU, this all-in-one (AIO) board delivers superior computational power while maintaining an exceptionally lightweight design of 2.6g (excluding motor connectors ). Its cross-shaped PCB stacking ensures seamless compatibility with all 1S frame kits, making it ideal for pilots seeking precision, reliability, and adaptability in micro HD builds.
Highlights:
- When paired with the FLYWOO O4 1S 5V BEC module, it can achieve a minimum voltage of 2.6V.
- Integrated Serial ELRS 2.4GHz receiver (with TCXO crystal oscillator for superior precision and stability)
- STM32F405BGA aerospace-grade MCU (up to 68% faster processing vs. traditional F411 and 20% vs. G437)
- Equipped with ICM-42688P gyro and 8MB Betaflight Blackbox flash memory
- Ultra-compact, slim, cross-shaped PCB layout compatible with all popular 1S frames
- Specifically optimized for 1S HD drone setups, including Walksnail, HDZero, and DJI O4 systems

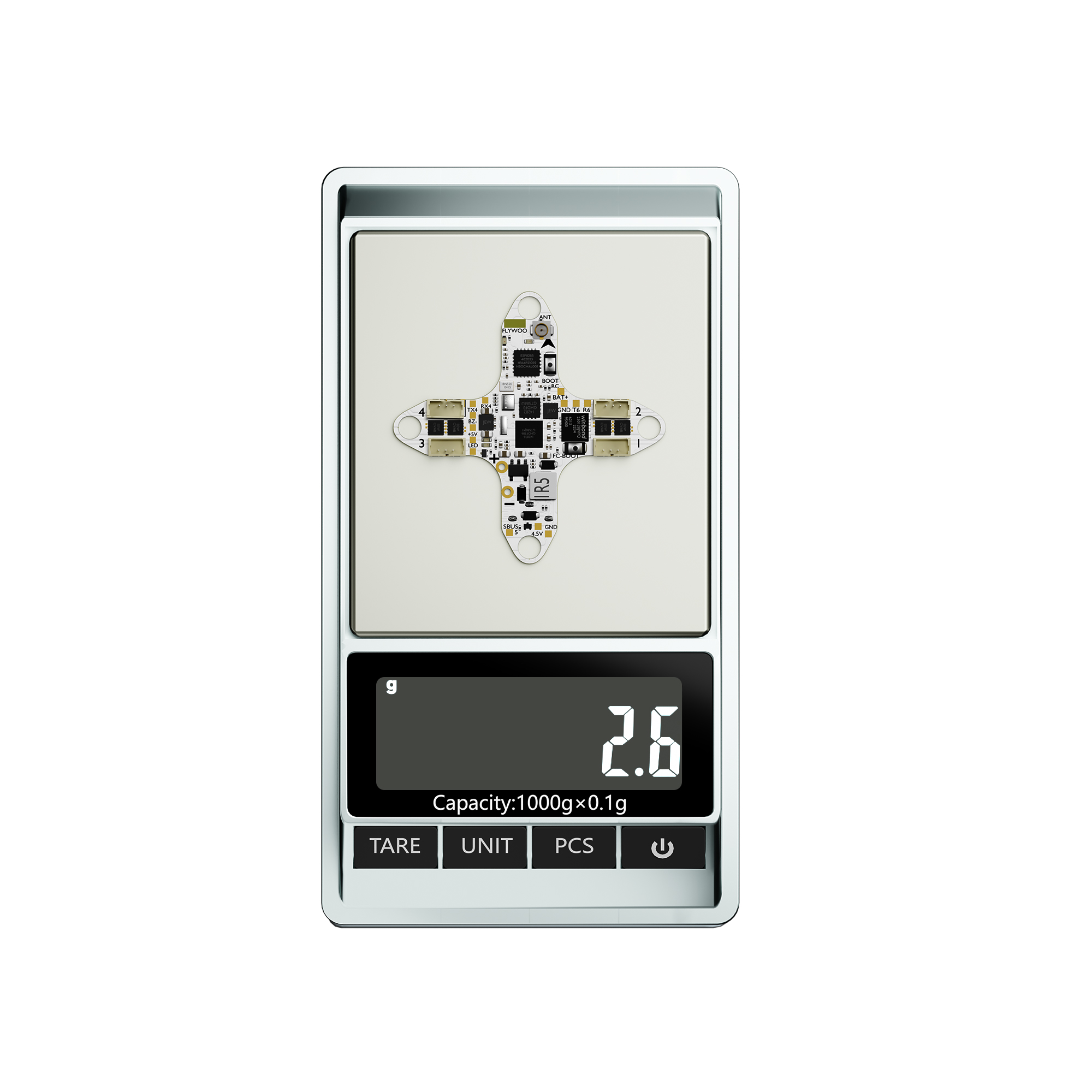

- Weighs just 2.6g without motor connectors—the industry's lightest 1S AIO solution
- Pre-soldered motor connector
Specifications：
|
Product Name
|
GOKU F405 HD 1S 1S 5A AIO w/TCXO ELRS
|
| MCU |
STM32F405BGA
|
| IMU |
ICM42688P
|
| Barometer |
SPL06
|
| Black Box |
8M
|
| OSD Support |
No
|
| UART |
UART 3（For ELRS),UART4,UART5(SBUS),UART
|
| Protocols |
CRSF, SBUS, iBus, Spektrum
|
| BEC |
5V 2.0A max
|
| RX |
Flywoo TCXO EL24E 2400 RX 3.0.0
|
| FC Firmware |
FLYWOOF405S_AIO
|

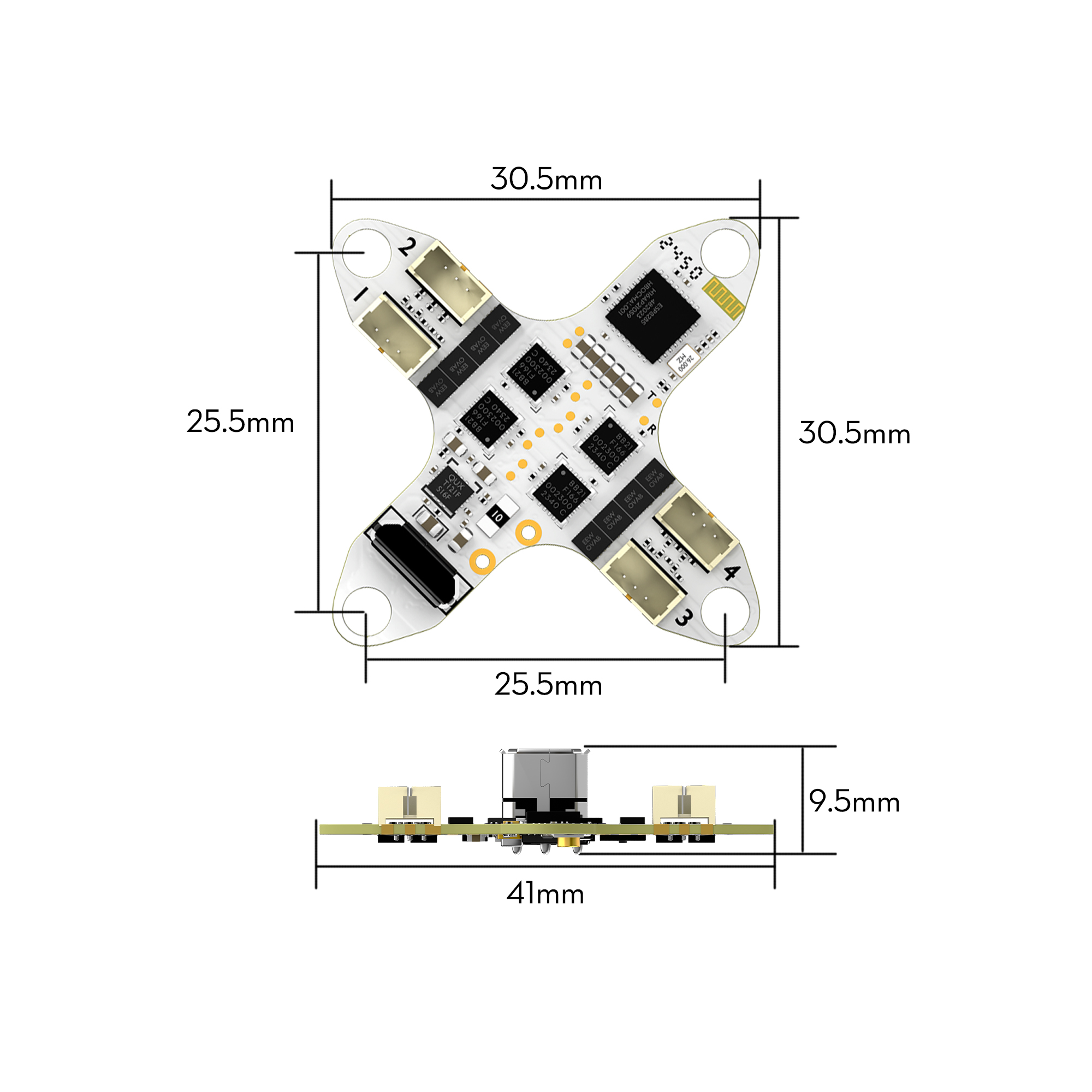

| Dimensions |
30.5 x 30.5mm
|
| Mounting Holes |
Standard 25.5/25.5mm square to center of holes
|
| Weight |
2.6g ( no motor connector )
3.28g ( with motor connector )
|
|
Product Name
|
Onboard 4in1 ESC
|
| Power input |
1S Only
|
| Current |
5A continuous, 8A peak
|
| ESC firmware |
O_H_5_48KHz_V0.19.hex Bluejay firmware
|
| Digital signal protocol |
DShot300, DShot600
|
| Motor Connector |
JST1.25
|
| Battery connector |
A30
|
|
Product Name
|
FLYWOO O4 1S 5V BEC Module |
| Input Voltage |
2.65V-5V (1S battery voltage)
|
| Output |
5V/3A
|
| Dimensions |
11mm x 8mm x 2.2mm
|
| Weight |
0.4g
|
In the box :
- 1x GOKU F405 HD 1S 5A ELRS AIO (pre-soldered motor connectors)
- 1x FLYWOO O4 1S 5V BEC Module
- 1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL--40mm
- 5x M2*6.6 Shock-absorbing ball
- 1x shrink film
- 4x Silica wire (Red/Black)
- 1x A30 Power cable
