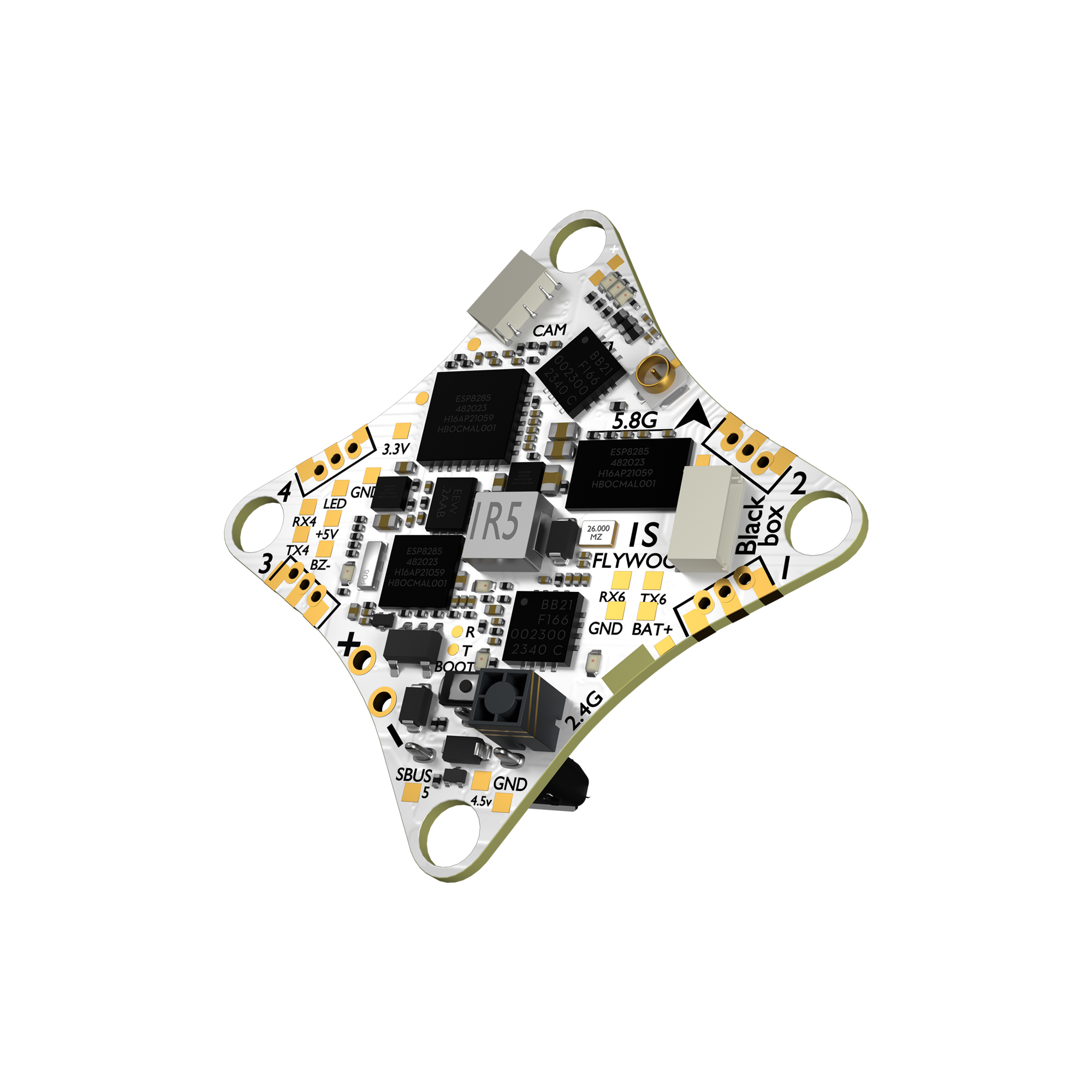

GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO

Name: GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
Brand: Flywoo
SKU: FW19004272
Price: 69.99 USD
Availability: InStock
Rating: 0 (0 reviews)

$69.99 USD

(tax included)

Quantity

Get 1% Flywoo Credit of the total purchase value

Enjoy a 7-day return policy with no reason required.

Leave a review and get a 2% discount code for your next order.

Product Information

Description
Specifications
FAQ

About this product

GOKU F405 ERVT 1S 5A 5-in-1 AIO Flight Controller – A revolutionary all-in-one solution integrating flight controller, ESC, VTX, receiver, and OSD. Powered by an F405BGA MCU , it delivers 68% higher processing power than traditional F411 chips, enabling ultra-low latency for competitive racing and acrobatic maneuvers.

Highlights

Integrated Design ：Modular plug-and-play interfaces for solder-free installation of motors, cameras, and blackbox.

Unmatched Processing：
- F405BGA chipset with 68% faster clock speed for lightning-fast response.
- 1S LiPo, 5A continuous current output ensures stable power delivery (supports Bluejay firmware).
- Built-in 4kHz gyro
Video Transmission Switch：
-Featuring adjustable 25-400mW transmission power and electronic switch
-The pagoda-style integrated antenna delivering ≥1.5km range
-1S-optimized circuitry for sub-50ms video latency
Professional Expandability
- Optional Flywoo plug-and-play Flight Blackbox (512MB storage) .
- Fully compatible with Betaflight, INAV, and other mainstream firmware

configuration

MCU: STM32F405BGA
IMU: ICM42688P
Barometer: No
Black Box: No (Up to 512M external)
OSD Support: AT7456E (LGA16)
UART:UART1 (VTX IRC),UART2(Blackbox),UART3 (ELRS RX),UART4,UART5 (SBUS),UART6
Supported Protocols: CRSF, SBUS, iBus, Spektrum
BEC: 5V 2.0A max
RX: Flywoo EL24E 2400 RX 3.0.0
FC Firmware: FLYWOOF405S_AIO
Dimensions: 30.5 x 30.5mm
Mounting Holes: Standard 25.5/25.5mm square to center of holes
Weight: 4g

Onboard 4in1 ESC

Power input: 1S Only
Current: 5A continuous, 8A peak
ESC firmware: O_H_5_48KHz_V0.19.hex Bluejay firmware
Digital signal protocol: DShot300, DShot600
Motor Connector: JST1.25
Battery connector: A30

Onboard analog VTX

Built-in VTX : 25/50/100/200/400/0mw
VTX Protocol : IRC Tramp
Frequency:5.8GHz 40 channels
Raceband: 5658-5917MHz
Operating temperature:-15°~+80°

In the box

1x GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
1x A30 power cable
1x JST-0.8 3pin 50mm camera cable
1x Flywoo Black box connector cable
4x 1.25mm 3-Pin Vertical Straight Socket
4x M2x6.6 Shock-Absoring Ball

Q1: Can the built-in ELRS be disabled?

A: Yes. When using TBS/XM+ receivers, modify the receiver UART via the ground station. Alternatively, physically disconnect the ELRS as shown in the wiring diagram to prevent interference with external devices.

Q2: Can the onboard ELRS firmware be updated?

A: Yes. This flight controller supports full receiver serial port and Wi-Fi flashing. Update the firmware via the ELRS ground station or by connecting to the receiver’s Wi-Fi.

Q3: Can the integrated VTX be turned off?

A: We have configured a mode switch for this VTX, which you can operate using USER2

Q4: What connector type is used for the blackbox and receiver?

A: We use 0.8mm pitch connectors to maximize plug-and-play compatibility in tight spaces.

Q5: Does it support LiHV high-voltage batteries?

A: Yes. Compatible with 3.0-4.35V input, featuring built-in over-voltage/over-current protection for safe use with 1S LiPo/LiHV batteries.

Q6: What are the benefits of the external blackbox?

A: The optional Flywoo plug-and-play blackbox (512MB storage) offers 1kHz sampling rate to record gyro/motor data, fully compatible with Betaflight Blackbox analysis tools.

Q7: Which firmware and receiver protocols are supported?

A: Natively supports Betaflight firmware, CRSF/ELRS/SBUS receivers, and DShot300 ESC protocol.
