Flytimes 85 frame parts collection
Description:
The Flytimes 85 frame is a 2-inch micro drone frame for indoor and narrow space flight, compatible with Flywoo O3 lite and Ultra air unit(18mm Cam size) or Nebula Pro nano / Wasp Nano / Hdzero Nano / Flywoo Nano cam V3 / Walksnail Mini 1S (14mm cam size)
Design Features：
- Latest three-point CNC damping design to eliminate vibration and jelly effects.
- New Y-shaped aluminum alloy bracket with TPU propeller guard for weight reduction and protection.
- Downward VTX for heat dissipation. Reverse thrust for stable flight.
- TPU propeller guard can be printed and replaced with your favorite color
Specifications:
| Brand | FLYWOO |
| Model | Flytimes 85 |
| Main Board Thickness | 2mm |
| CNC Gimbal Thickness | 1mm |
| Prop guard | TPU |
| Flight Control Hole Position | 25.5x25.5mm |
| VTX Hole Position | 25.5x25.5mm |
| Motor Hole | 6.6mm |
|
Propeller Size
|
2 inch
|

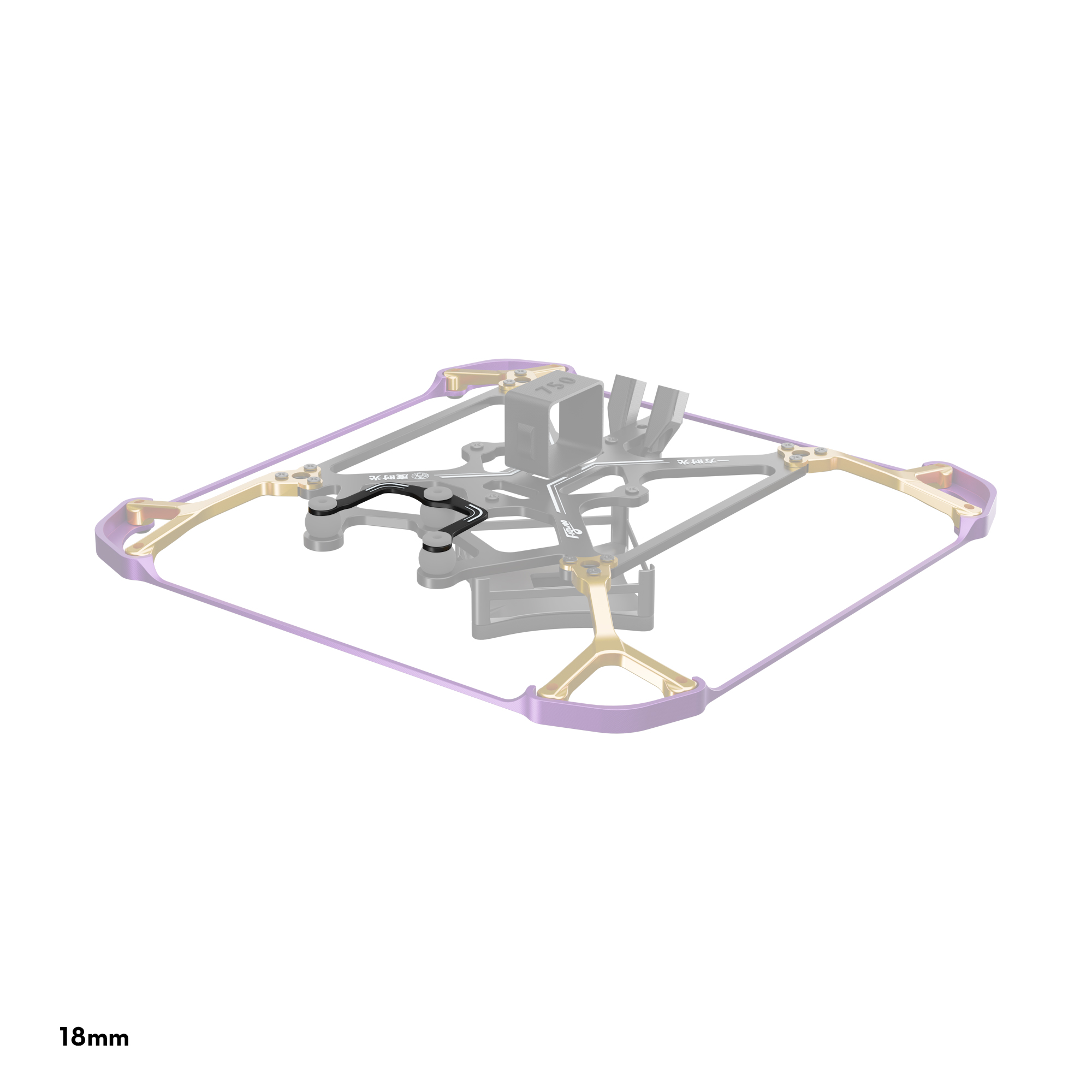

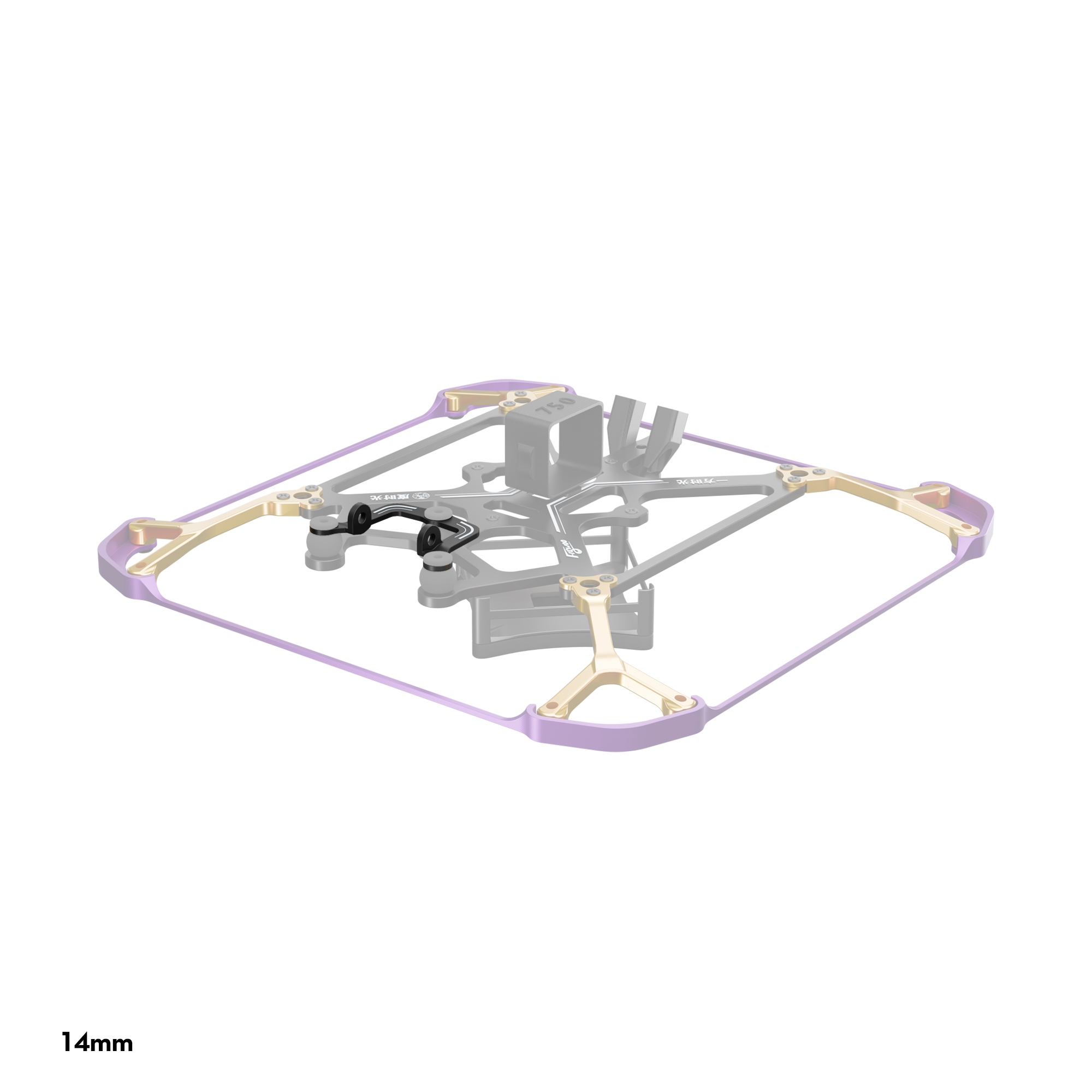

| Camera Hole Position | 18mm / 14mm |

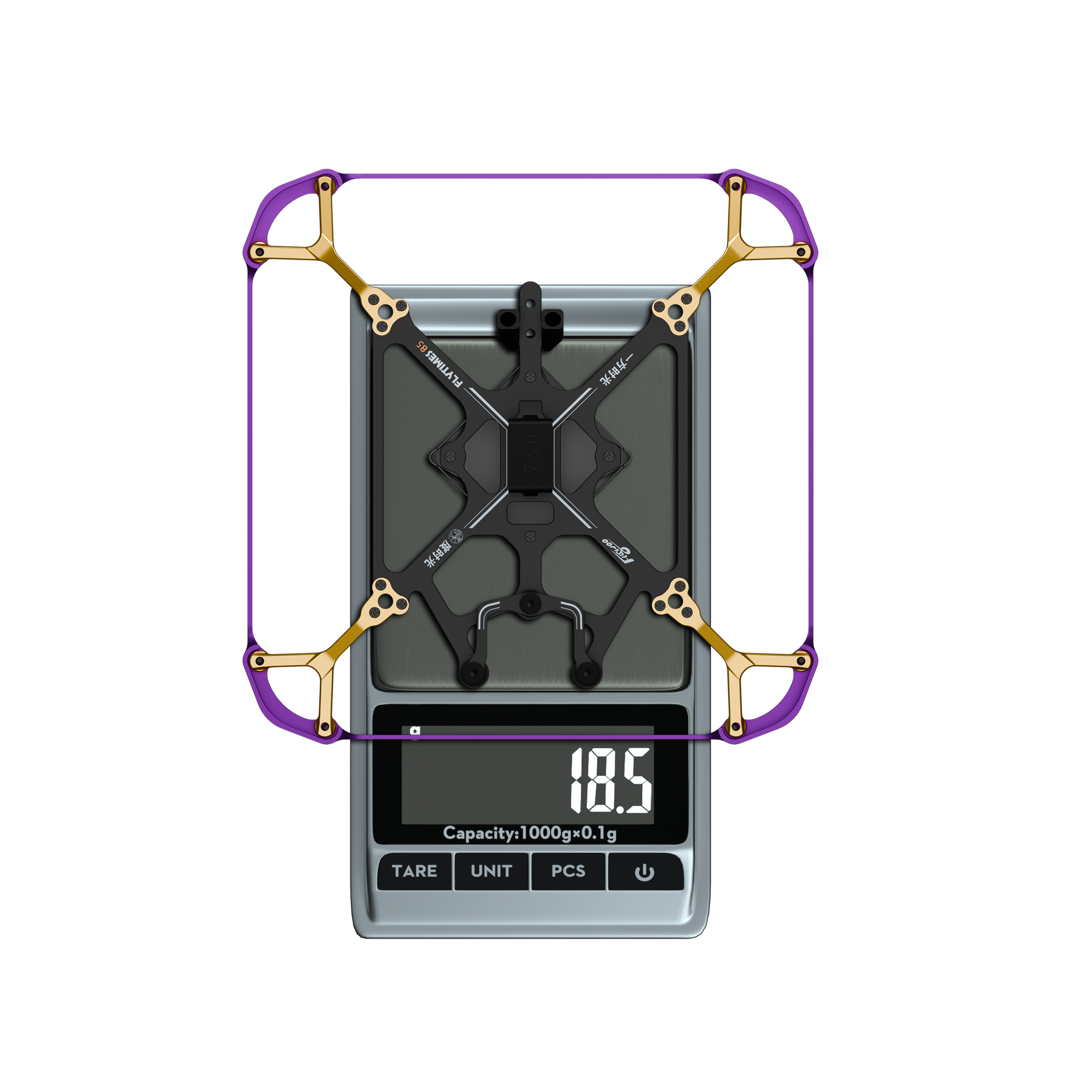

| Weight | 18.5g |
Recommmend Configuration :
| Electronic | GOKU F405 HD 1-2S 12A ELRS AIO V2 |
| Transmission +Camera |
|
| Propeller | 2015 2-Blade Propeller |
| Motor | ROBO 1003 14800KV |
| Antenna | Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL |
| Battery | Flywoo 2S 550mah / 750mah / 1000mah |

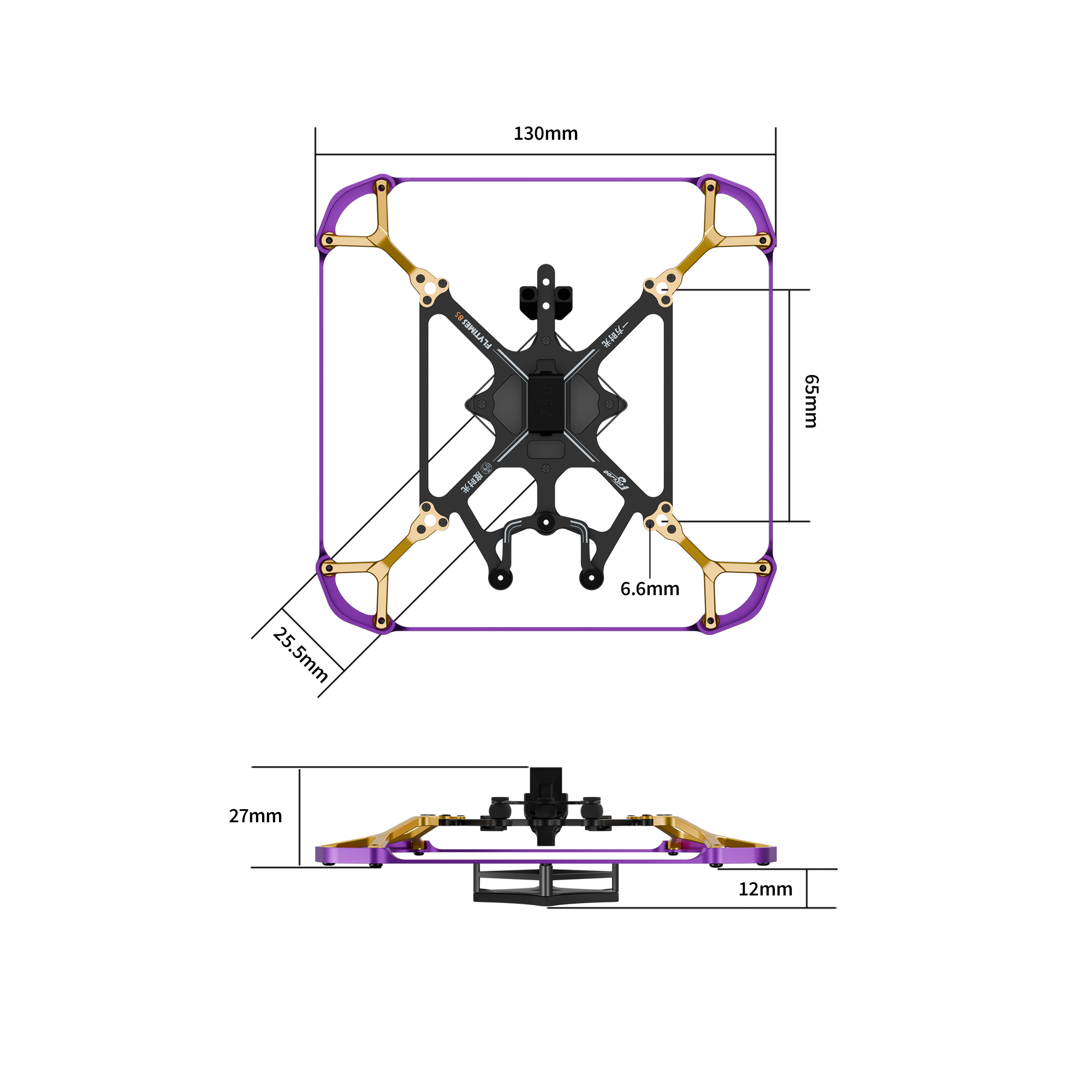

Product Size:

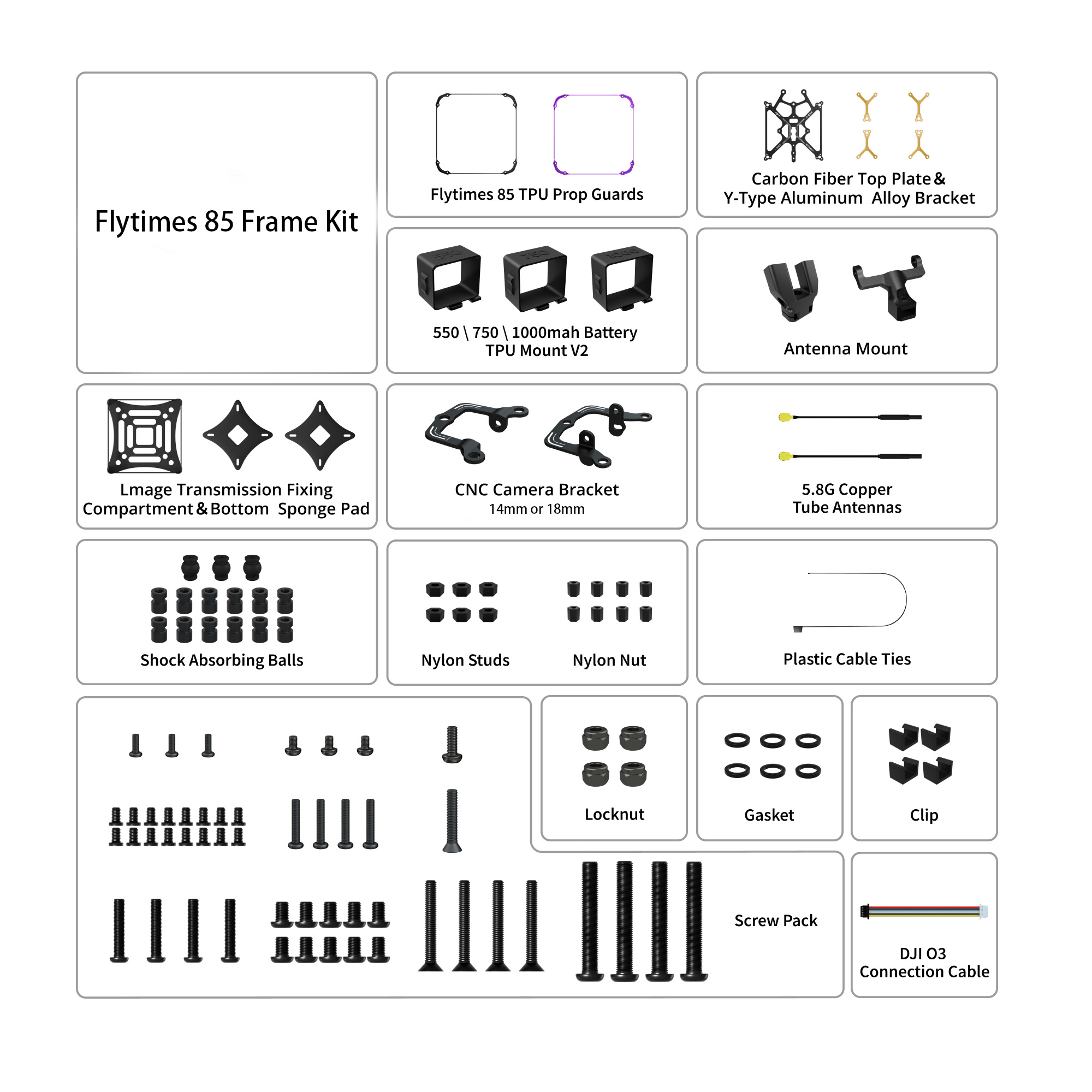

Includes:
